股骨三合一交鎖髓內釘

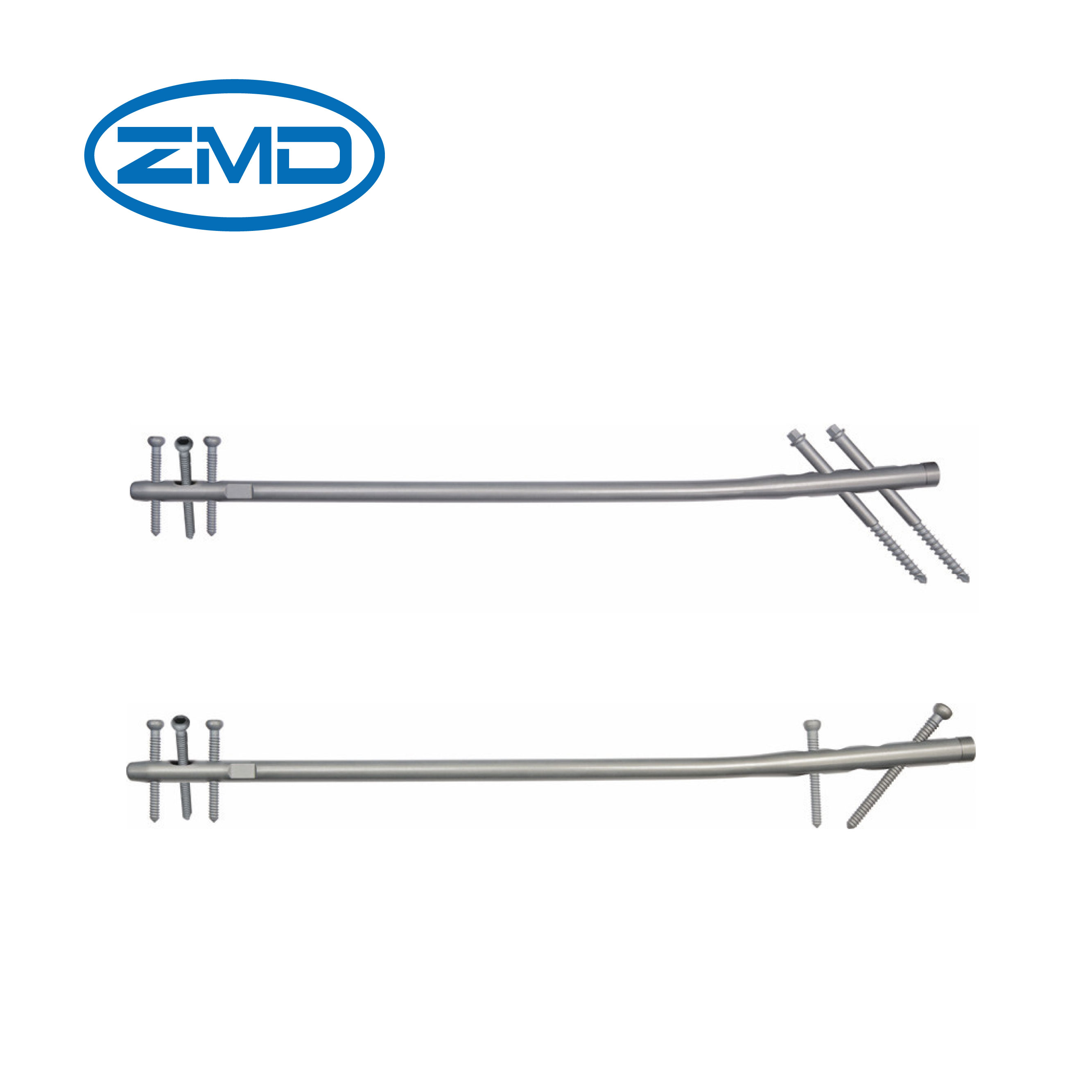

Multi-fix Femoral Intramedullary Nail
規格型號：Φ9.4/10/11mm
Specification:9.4/10/11mm
材質：鈦合金
Material：Titanium Alloy
|
產品編號
Product NO.
|
直徑
Diameter
|
長度
Length(mm)
|
|
4220/1.0932
|
9.4
|
320 Left/Right
|
|
4220/1.0934
|
340 Left/Right
|
|
4220/1.0936
|
360 Left/Right
|
|
4220/1.0938
|
380 Left/Right
|
|
4220/1.0940
|
400 Left/Right
|
|
4220/1.0942
|
420 Left/Right
|
|
4231/2.1032
|
10
|
320 Left/Right
|
|
4231/2.1034
|
340 Left/Right
|
|
4231/2.1036
|
360 Left/Right
|
|
4231/2.1038
|
380 Left/Right
|
|
4231/2.1040
|
400 Left/Right
|
|
4231/2.1042
|
420 Left/Right
|
|
4231/2.1130
|
11
|
300 Left/Right
|
|
4231/2.1132
|
320 Left/Right
|
|
4231/2.1134
|
340 Left/Right
|
|
4231/2.1136
|
360 Left/Right
|
|
4231/2.1138
|
380 Left/Right
|
|
4231/2.1140
|
400 Left/Right
|
所配螺釘：拉力釘鎖釘4.5、全牙鎖釘4.5
Screw SizeLag screw 4.5/Full Threaded Locking Screw4.5
|
